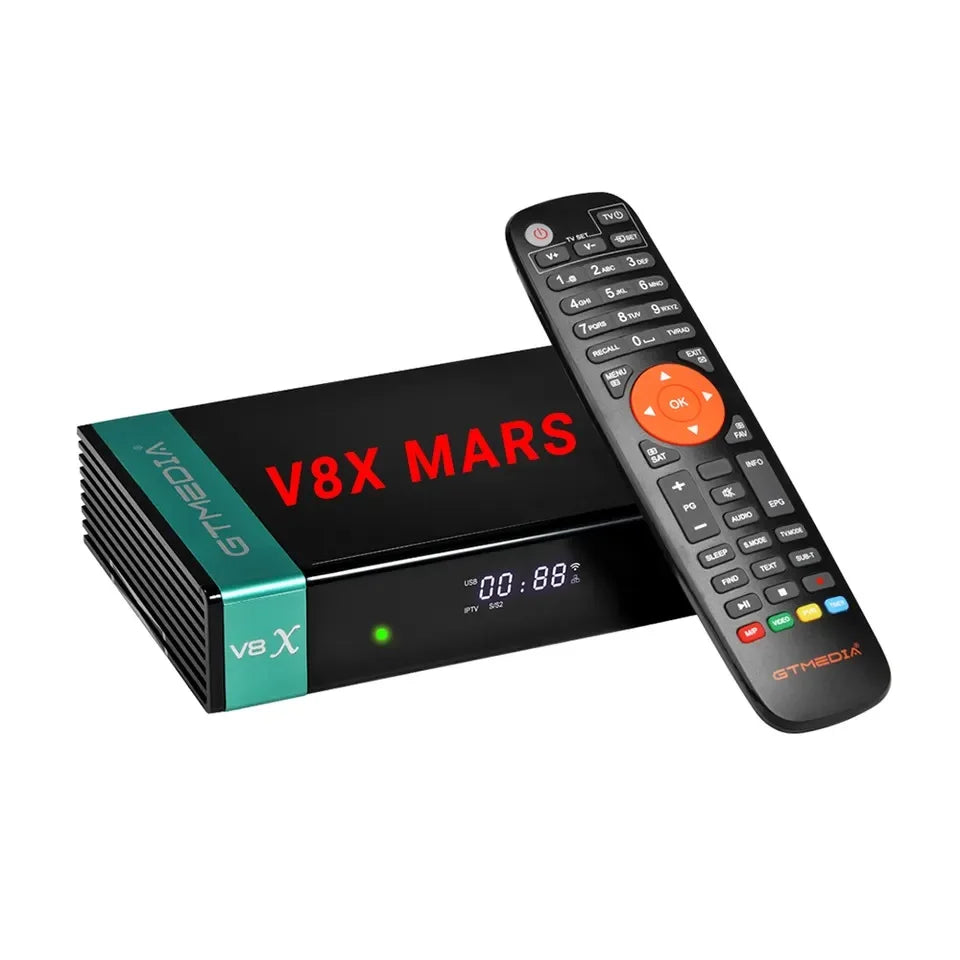

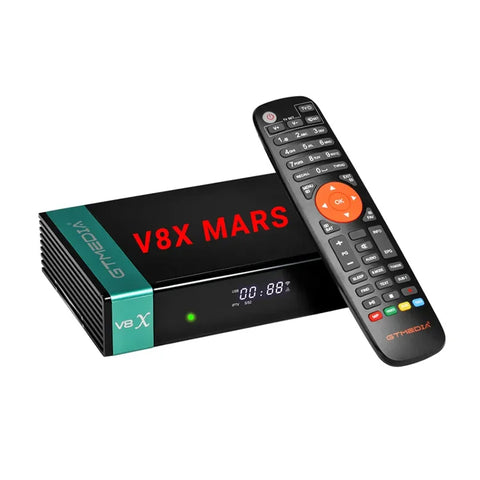

GTMEDIA V8X Mars IKS Code One Year Stable Server Box ID Activation
my whats_app: +8615994788022
my skype: susie_szyling






|
GTMEDIA V8 X (DVB-S/S2/S2X SCART+CA)
|
|||||||
|
Highlight
|
1.Support DVB-S/S2/S2X, VCM/ACM/multi-stream, HEVC main 10 profile, AVS+
|
||||||
|
2.Support BISS auto roll, Full PowerVu, DRE &Biss key;
|
|||||||
|
3.Support Unicable, DiSEqC1.0/1.1/1.2/USALS Motor fully support;
|
|||||||
|
4.Support SAT streamed to Gtplayer, DLNA;
|
|||||||
|
5.Support Built-in 2.4G WIFI module, Ethernet, and support 3G usb dongle;
|
|||||||
|
6.Support Online Movie (Youtube,Youporn,Hotstar);
|
|||||||
|
7.Support IPTV (Customize, xtream, stalker);
|
|||||||
|
8.Support Network Sharing Cccam,Newcam,Mgcam;
|
|||||||
|
9.Support CA card slot;
|
|||||||
|
10.Technical support website : www.freesat.cn;
|
|||||||
|
Note: We reserve the right to change the design and OEM/ODM supported
|
|||||||
|
Main Chip Sets
|
CPU
|
770MHz Dual Core
|
|||||
|
Flash Memory
|
64MB SPI Flash
|
||||||
|
DDR2 Memory
|
1G RAM
|
||||||
|
TS Demux
|
Demultiplexer
|
ISO/IEC 13818-1
|
|||||
|
Input Bit Rate
|
Max 100Mbit/s
|
||||||
|
Video Decode
|
Video Decode
|
HEVC main profile#level 4.1 and main10 profile#L4.1,High tier
MPEG-2 MP#ML H.264 BP,MP&HP#L3/L4.1/L4.2 AVS Jizhun profile and broadcast profile MPEG-4 SP profile, advanced simple profile#L5 VC1 SP#ML, MP#HL, AP#L0-3 H263 baseline profile JPEG decoder |
|||||
|
TV System
|
Automatic PAL/NTSC conversion
|
||||||
|
Aspect Mode
|
Auto, 16:9 Pillar box, 4:3 Pan & Scan, 4:3 Letter Box
|
||||||
|
Video effects
|
Standard, Default, Vivid.
|
||||||
|
Video Resolution
|
1080P, 1080I, 720P, 576P, 480P, 576I, 480I
|
||||||
|
HD Color Space
|
RGB, YUV422, YUV444, Auto
|
||||||
|
Audio Decode
|
Audio Decode
|
MPEG-1/2 Layer 1/2/3, MPEG-2/4 LC-AAC, MPEG-4 HE-AAC,
DB AC3/AC3+, DRA CH/5.1CH |
|||||
|
Sound Mode
|
LEFT/RIGHT/STEREO/MONO
|
||||||
|
Sampling Frequency
|
32KHz,44.1KHz,48KHz
|
||||||
|
Audio Out
|
LPCM Out, BS Out
|
||||||
|
Hardware specifications
|
Panel display
|
4-digit white LED display (Support function display)
|
|||||
|
LED Indicator
|
Power ON :Green; Standby :Red
|
||||||
|
Button
|
NOT
|
||||||
|
Wifi
|
Built in 2.4G WiFi Support IEEE 802.1.1b/g/n
|
||||||
|
IR
|
Exit IR for 38KHz,Infra Remote control
|
||||||
|
Rear Panel
|
LNB IN (Frequency Range950MHz to 2150MHz)
|
||||||
|
HD OUT (up to 1080P)
|
|||||||
|
SCART OUT
|
|||||||
|
AV OUT (3.5MM*18MM Jack/4-Pin:Red-White-Yellow-GND)
|
|||||||
|
1*CA card solt
|
|||||||
|
1*USB HOST
|
|||||||
|
1*RJ45
|
|||||||
|
1*RS232 (3-pin 3.5 mm jack)
|
|||||||
|
DC IN (DC12V/1.5A)
|
|||||||
|
DVB-S/S2 specificati-ons
|
System standard
|
ETS 302 307
|
|||||
|
Frequency Range
|
950~2150MHz for DVB-S/S2/S2X baseband demodulator
|
||||||
|
LNB Power and Polarization
|
DiSEqC1.0/1.1/1.2/USALS Motor fully support,
Support Unicable, 13/18V DC # 400mA MAX, 22KHz±0.4KHz
(0.6V±0.2V)tone,Overload Protection
|
||||||
|
Input Level Range
|
-80dBm ~ -20dBm (average power)
|
||||||
|
Symbol Rates
|
DVB-S QPSK,DVB-S2 QPSK/8PSK/16APSK/32APSK,
DVB-S2X QPSK/8PSK/16APSK/32APSK/64APSK |
||||||
|
Forward error correction rate
|
1/4,1/3,2/5,3/5,2/3,3/4,4/5,5/6,8/9,9/10
|
||||||
|
Carrier frequency acquisition range
|
±5MHz for symbol rates above 3 Msps and ±3MHz for the
remaining symbol rates
|
||||||
|
Symbol Rates
|
2 ~ 90MSPS(Code Rate 1/2)
|
||||||
|
Roll-off factors
|
Roll-off factors for pulse shaping: 0.2, 0.25 and 0.35
|
||||||
|
Code Rates
|
1/2,2/3,3/4,5/6,7/8 for DVB-S, 1/4,1/3,2/5,1/2,3/5,2/3,3/4,5/6
,8/9,9/10 for DVB-S2, DVB-S2X Normal Frame and Short Frame FEC code rates |
||||||
|
ANT. Connector
|
Connector:IEC TYPE F Input Impedance:75 Ω
|
||||||
|
Sortware Features
|
Standard
|
Fully comply with DVB-S/S2/S2X (SCPC and MCPC receivable
from C/Ku band satellite), MPEG-2/4 and H.265 Standard
|
|||||
|
Channel Search
|
Support automatic network search for new added transponders
|
||||||
|
Channels Number
|
6000+ channels TV and Radio programmable
|
||||||
|
Channel
|
Recording one channel, can view another channel under the
same TP,Various channel editing
function(favorite,move,lock,skip,delete,rename,find,sort) |
||||||
|
Favorites
|
31 different favorite groups selection
|
||||||
|
OSD Language
|
English,French,German,Italian,Spanish,Portuguese,Russian,Turkish
Polish,Arabic,Persian,Thai,Vietnam,Czech,Armenian,Georgian,
Ukrainian,Albanian,Hungary,Malay,Indonesisch,Dansk,Greek,Serbian.
|
||||||
|
OSD Color
|
32-bits OSD with anti-flickering
|
||||||
|
OSD Setting
|
Support OSD Timeout and Transparency, Subtitle Display, Channel
list displays pages 1-3.
|
||||||
|
Other Setting
|
Sets up multiple habitual operation Settings
|
||||||
|
Parental Ctrl
|
Parental control for channels
|
||||||
|
Easy Menu
|
Plug and Play installation, with an easy to use Menu System
|
||||||
|
EPG
|
Fully support to 7 days Electronic Program Guide(EPG)
|
||||||
|
Subtitle
|
support DVB EN300743 and EBU
|
||||||
|
Teletext
|
support DVB ETS300472 by VBI
|
||||||
|
SoftUpgrade
|
Software upgrades through USB port, or FTP upgrade.
|
||||||
|
Time Set
|
Time set by GMT offset automatic and manual,
Summer Time support
|
||||||
|
Timer
|
5 event timers,off/Once/Daily/Weekly Mode
|
||||||
|
USB Decode
|
USB 2.0
|
Support FAT/FAT32/NTFS big capacity hard disk
|
|||||
|
PVR Option
|
USB 2.0 for PVR,TIMESHIFT,media files playback
|
||||||
|
Media Codec
|
TS,mkv, mp4, avi, flv, f4v, ts, m2ts, mov, 3gp files
|
||||||
|
Audio Codec
|
WMA,MP3
|
||||||
|
Photo Codec
|
JPG, BMP, PNG, GIF
|
||||||
|
Packing
|
Product Dimension
|
193*125*40MM(L*W*H)
|
|||||
|
Packaged Size
|
264*170*55MM
|
||||||
|
Carton Size
|
572*360*280MM (20pcs/ctn)
|
||||||
|
Unit Weight
|
0.68 Kg with gift box
|
||||||
|
Carton Qty&Weight
|
20 pcs/Carton, 14 kgs
|
||||||
|
Accessories
|
Gift Box, Adapter, IR remote control, HD Cable, User Manual,
Warranty card
|
||||||
|
Physicals
|
Power Supply
|
AC 100V ~250V, 50/60Hz
|
|||||
|
Power Consumption
|
10W in operation
<1 W Standby Power Mode |
||||||
|
Temperature
|
Operation 0~+45℃; Storage -10~+60℃
|
||||||
|
Humidity
|
20~90%, non-condensed
|
||||||
